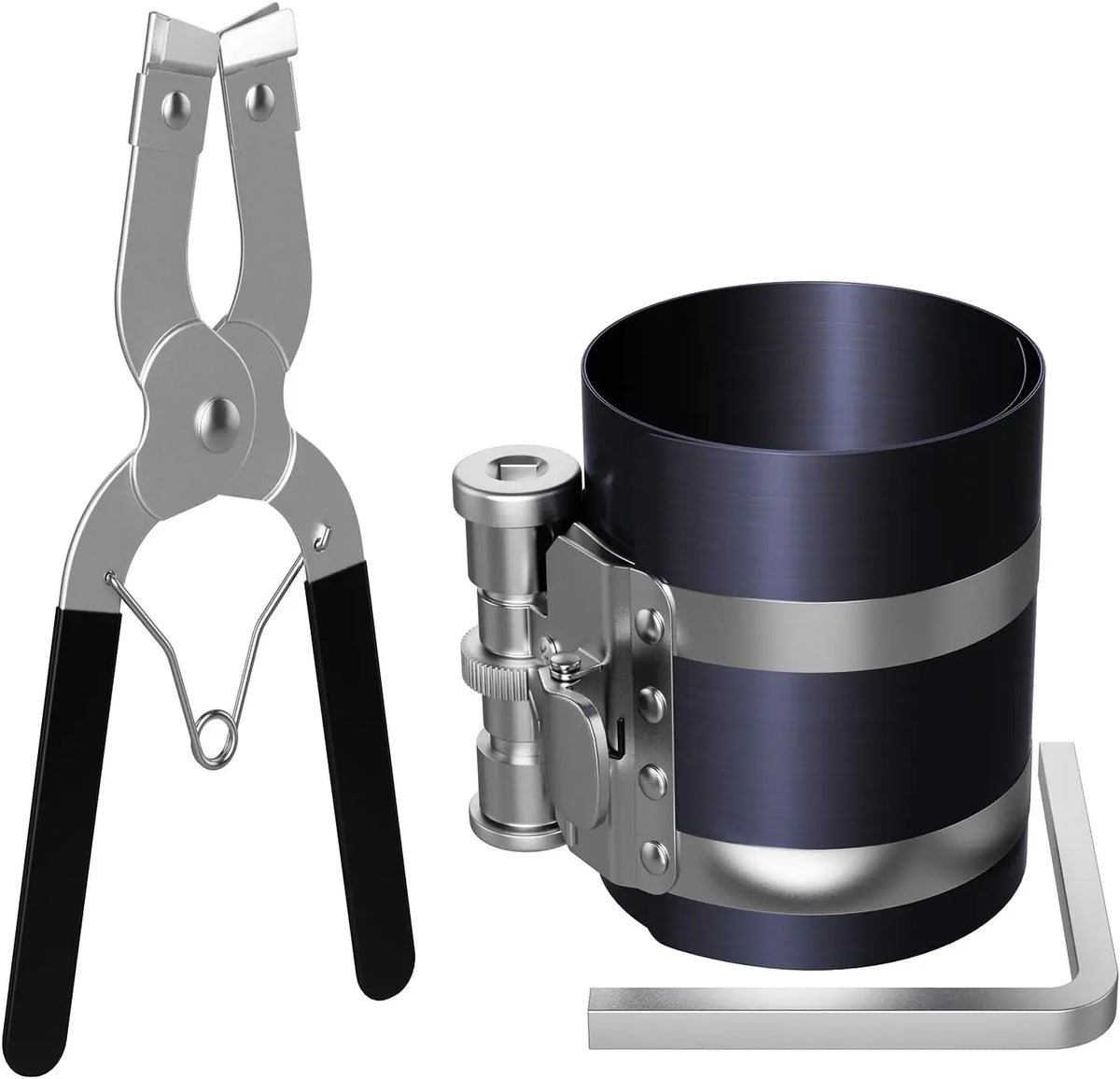

53–175mm Piston Ring Compressor and Pliers Set

This piston ring service set combines expander pliers with an adjustable compressor band for controlled removal and installation during compatible engine rebuilding work. The tools help reduce ring distortion and support even compression before the piston enters the cylinder bore.

Key selling points

• Two essential piston-ring service functions in one kit
• Expander pliers help open rings evenly during removal and fitting
• Adjustable compressor band covers a broad piston diameter range
• Spring-steel band applies even pressure around the ring pack
• Suitable for engine rebuilding and workshop maintenance

Specifications

• Product type: piston ring compressor and expander set
• Nominal compressor range: 53–175 mm
• Compatible ring width: up to approximately 6.4 mm, subject to ring design
• Compressor style: adjustable spring-steel band
• Pliers type: manual piston-ring expander
• Adjustment: supplied winding/adjustment tool

Package contents

• 1 × piston ring expander pliers
• 1 × adjustable compressor band
• 1 × adjustment wrench

How it is used

The expander pliers are used to open a compatible ring only enough to pass over the piston. For installation into the cylinder, lubricate as specified, arrange ring gaps according to the engine procedure, compress the ring pack evenly and keep the piston square to the bore while tapping it in with an appropriate non-damaging tool.

Important compatibility information

Confirm piston diameter, ring thickness, ring width and cylinder-bore requirements before ordering. Excessive ring expansion can permanently distort or break the ring. Engine assembly requires accurate measurement, correct orientation, cleanliness and specified lubrication; follow the engine manufacturer's workshop manual.
