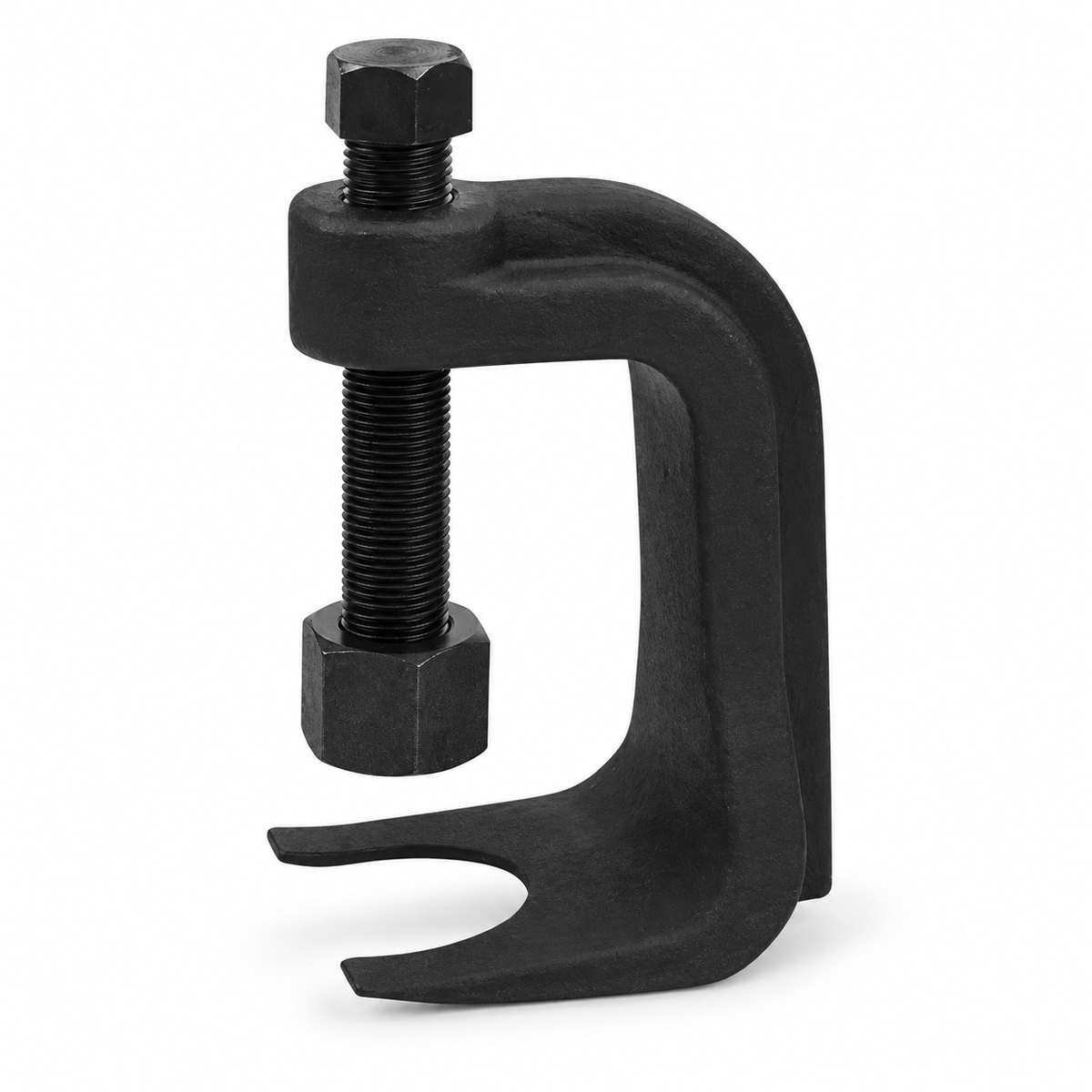

Universal 2-3/8 Inch Ball Joint Separator Tool

This heavy-duty screw-type separator applies controlled mechanical force to help release compatible ball joints and steering joints without repeated hammering. Its adjustable 2-3/8-inch working opening suits a range of workshop and serious DIY suspension jobs when clearance and joint dimensions match.

Key selling points

• Controlled screw action helps separate stubborn joints
• Approximate maximum working opening of 2-3/8 inches
• Robust steel body for workshop use
• Threaded forcing screw delivers progressive pressure
• Forked jaw fits around compatible joint studs
• Compact form can access locations unsuitable for larger pullers

Specifications

• Product type: ball joint and steering joint separator
• Operating method: mechanical screw force
• Maximum opening: approximately 2-3/8 in (about 60 mm)
• Construction: heavy-duty steel
• Jaw style: forked separator body
• Drive method: external hand tool applied to forcing screw
• Quantity: 1 separator tool

Typical applications

Designed for compatible automotive ball joints, tie-rod ends and steering or suspension joints on selected cars, 4WDs and light commercial vehicles. It is not vehicle-specific: available clearance, jaw position, stud size and opening must all be checked before ordering.

Package contents

• 1 × screw-type ball joint separator

Use and safety notes

Support the vehicle correctly on rated stands and follow the manufacturer’s workshop procedure. Position the tool squarely so force is applied through the centre of the stud. Lubricate the forcing screw as appropriate, tighten progressively and never exceed the tool’s safe working condition. Do not use a damaged or distorted tool. Suspension and steering work is safety-critical; final fastener torque, locking devices and wheel alignment should be checked by a qualified person.
